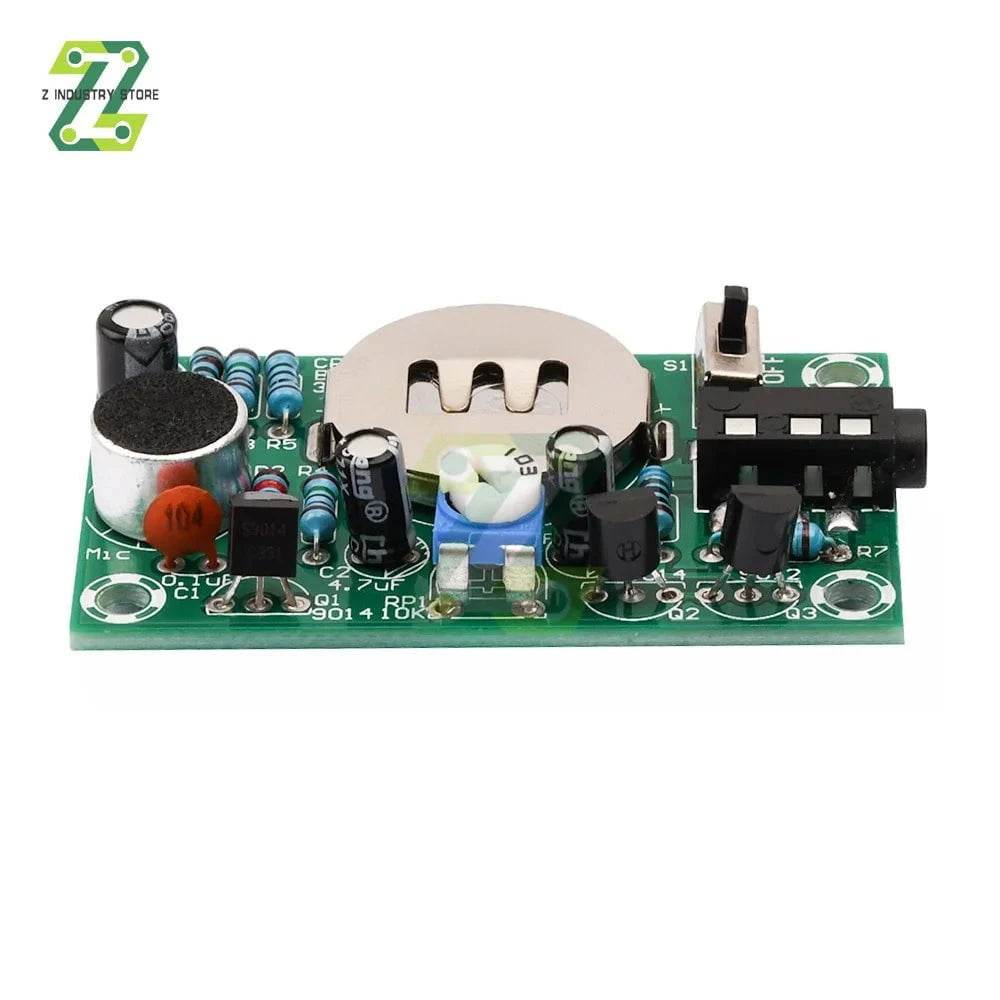

DIY Hearing Aid Kit Audio Amplifier

This DIY Hearing Aid Kit is an excellent choice for electronics hobbyists and educational projects, allowing users to create a functional audio amplifier.

• Real-Time Sound Reception: Captures sound from the environment and plays it directly through headphones.
• High Sensitivity: Features a microphone and advanced amplification circuits for superior sound reception, ideal for those with hearing impairments.
• Educational Tool: Perfect for practical training in electronic technology, enhancing skills in circuit design and assembly.
• Easy Assembly: Designed for beginners, this kit promotes learning with straightforward assembly instructions and low costs.
• Component Installation: Instructions ensure that users can successfully install components with guidance on proper soldering techniques.
• Versatile Application: Suitable for teaching electronic processes, digital circuits, and hands-on training for enthusiasts.

Specifications:

• Brand: Aideepen
• Certification: CE
• Model Number: Hearing Aid DIY Kit
• Origin: Mainland China
• Type: Audio Amplifier

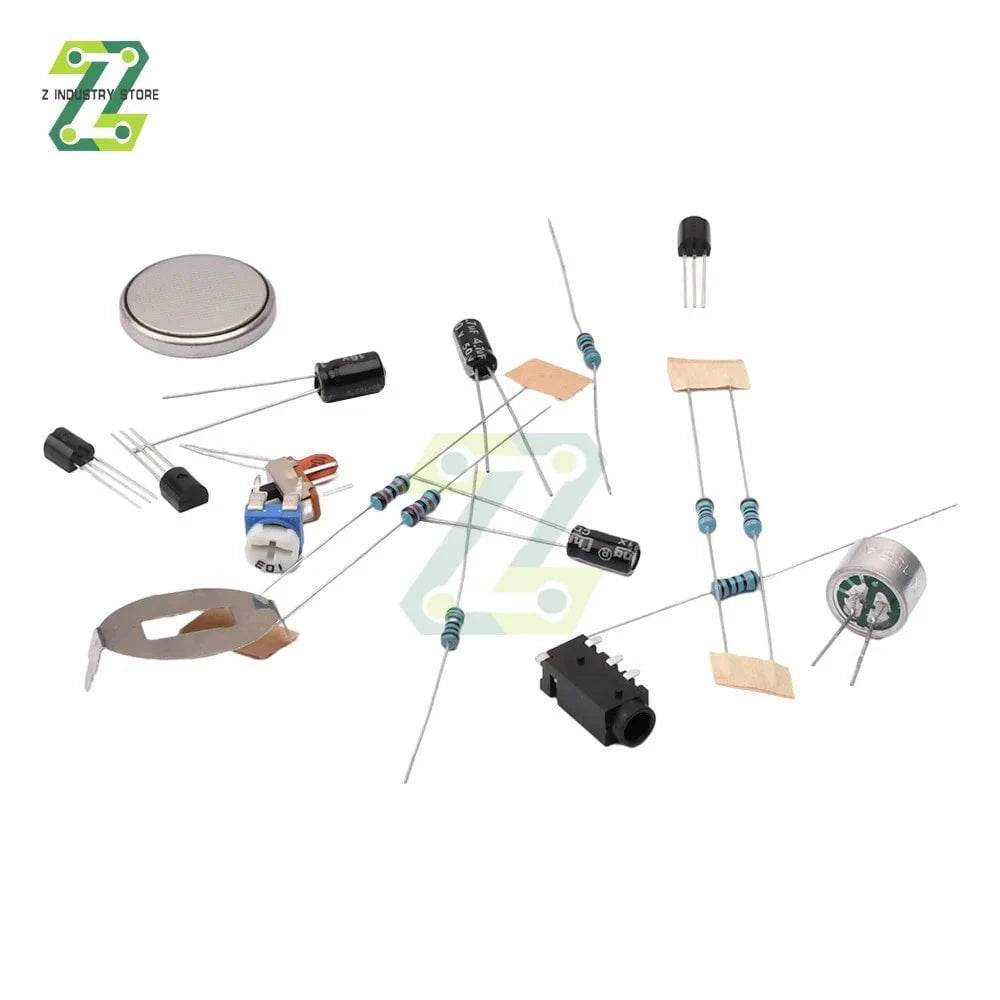

Installation Steps:

• Install resistors (no polarity required).
• Install ceramic capacitors (no polarity required).
• Carefully install the battery holder ensuring proper orientation.
• Fit the headphone jack and toggle switch (no polarity needed).
• Install the electrolytic capacitor, observing polarity.
• Assemble potentiometer and transistor components.
• Connect the electret microphone, ensuring correct pin alignment.

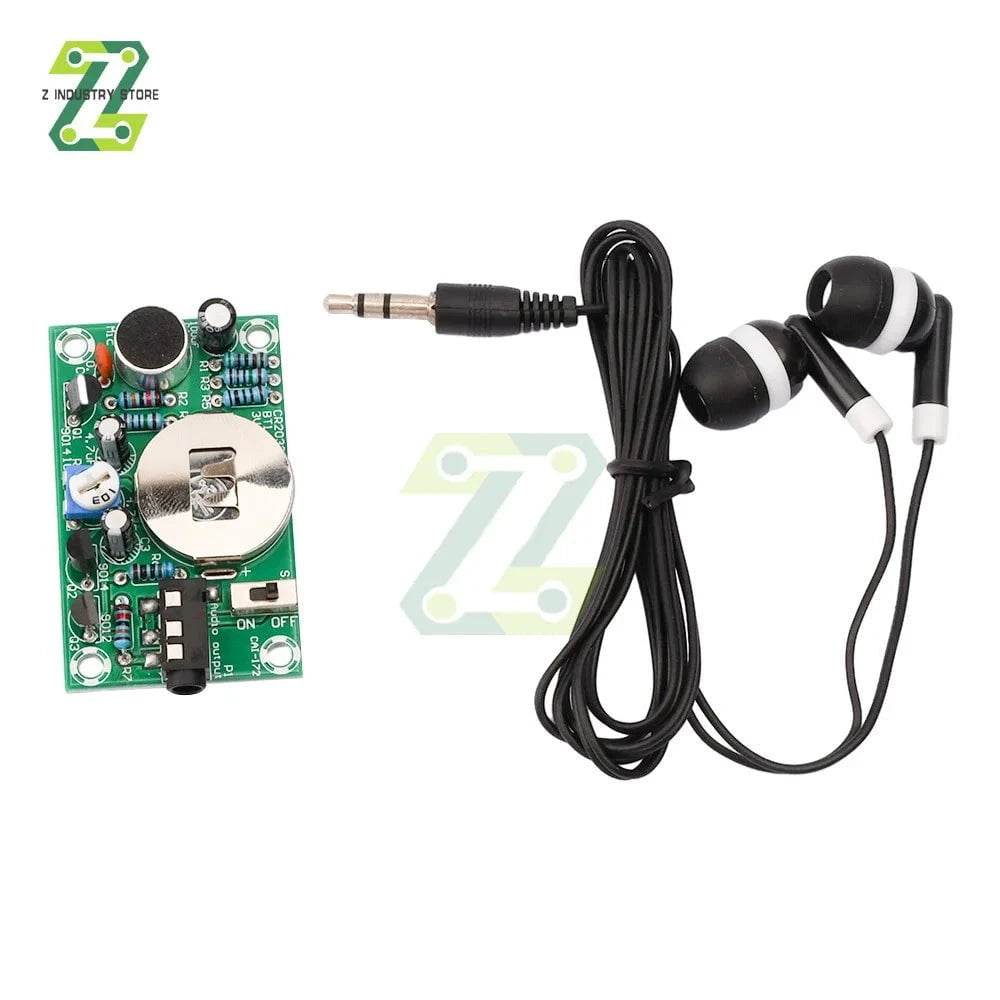

After assembly, conduct a thorough check to ensure all components are correctly installed and soldered. Insert the battery, connect the headphones, and enjoy the amplified sound.

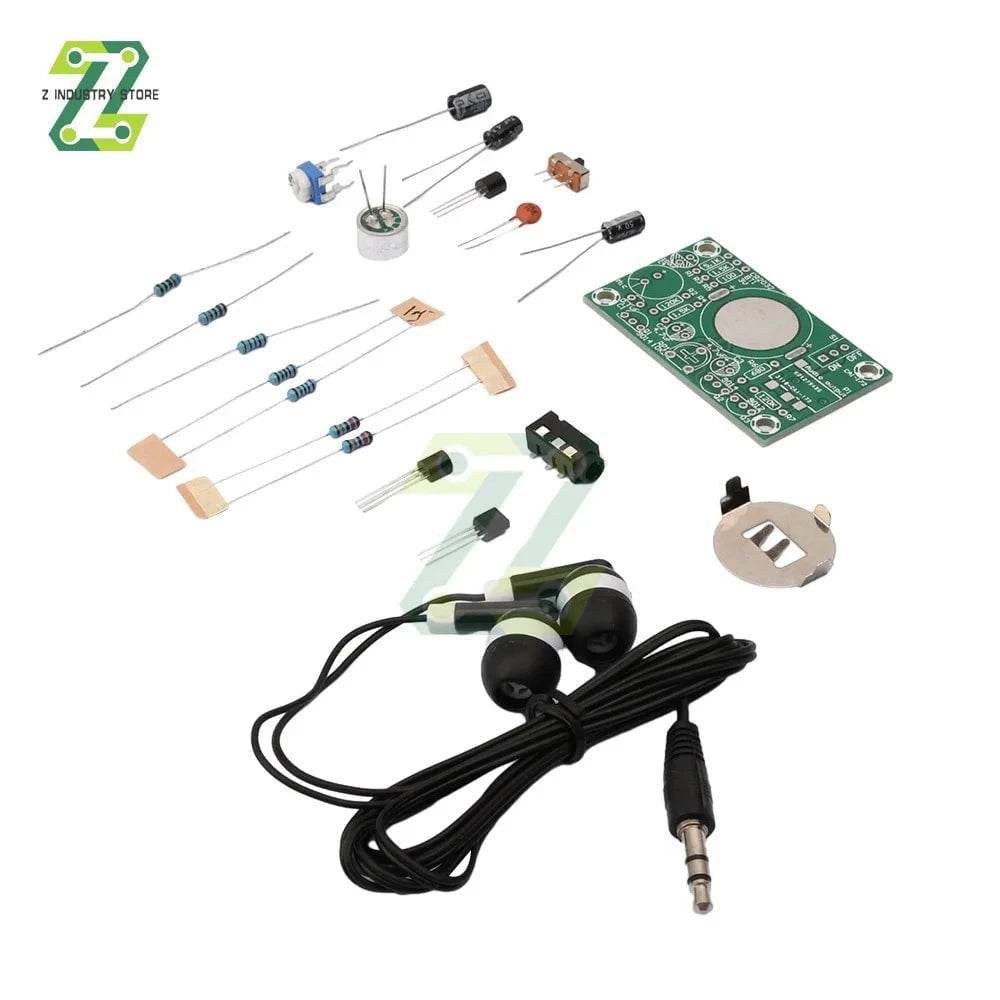

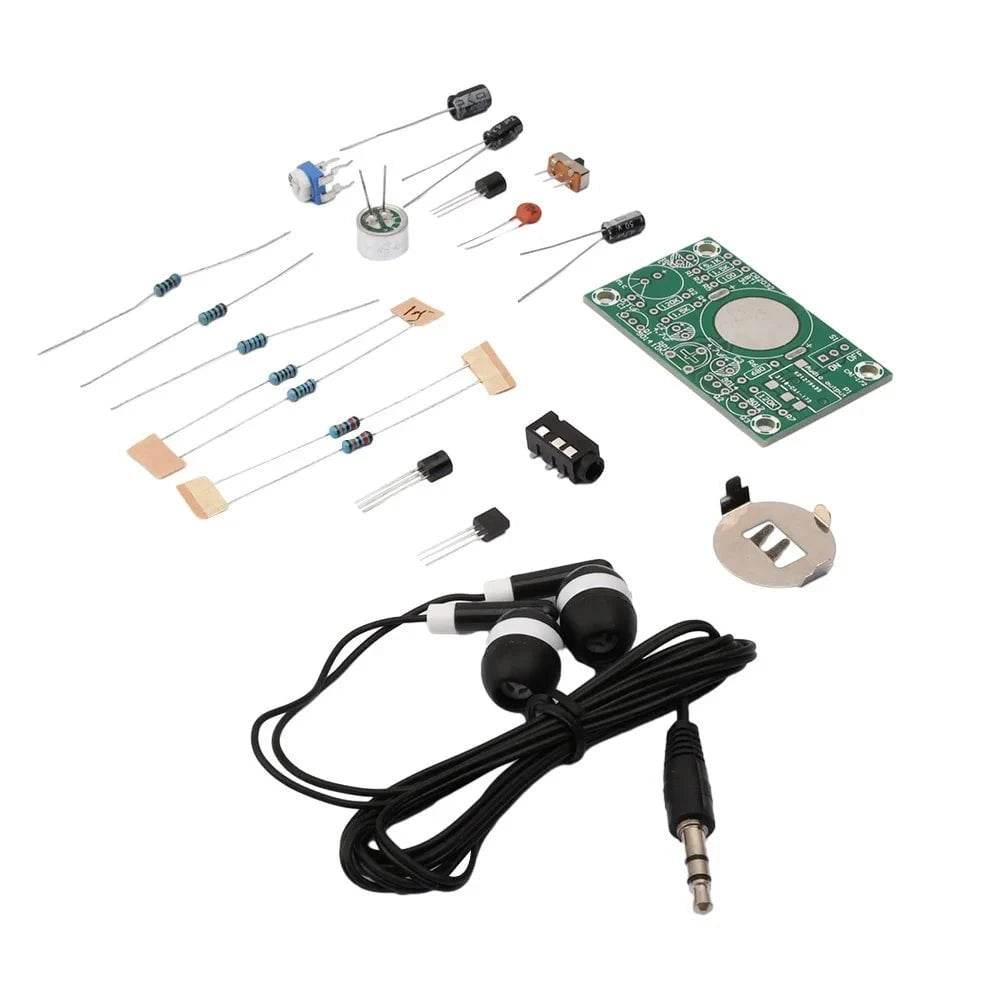

Package Includes:

• 1 x DIY Hearing Aid Kit
